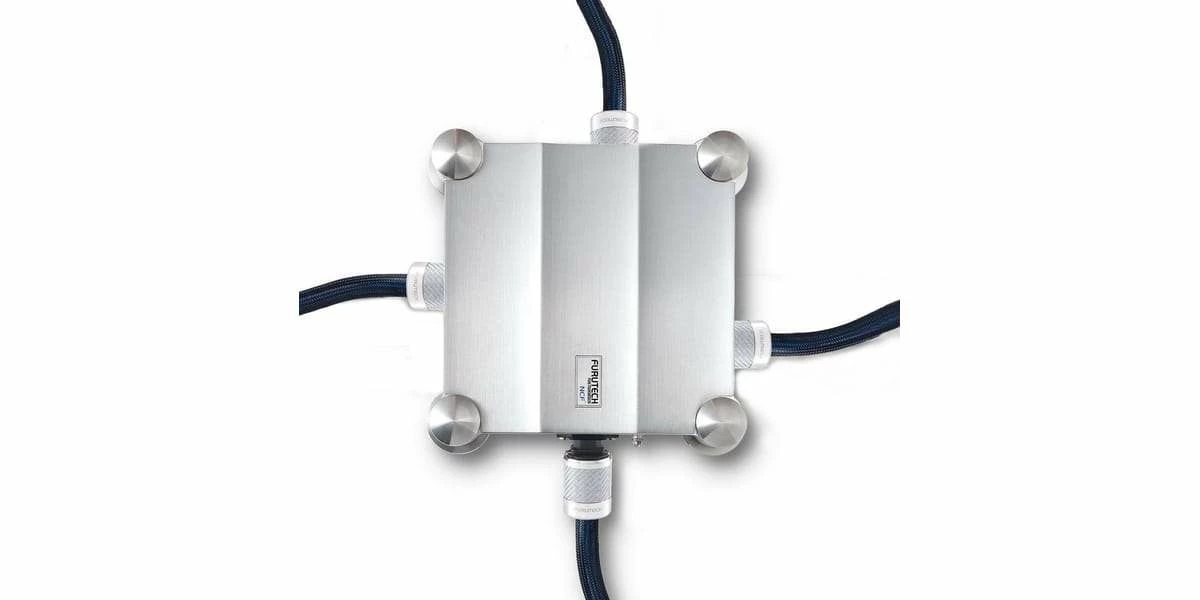

PURE POWER 6 NCF
Top-of-the-Line Furutech Power Distributor ——-Nano Crystal² Formula——–

Test

Pure Power 6 NCF has been designed based on the theory that the role of a power distribution unit, besides distribution of power, should be the absorption/elimination of high-frequency noise. The audio you hear from your system is essentially the incoming electricity itself, and the typically violent storms riding the AC line and its ground is very detrimental to the performance of your components. Highly resolving audio systems can retrieve incredible amounts of detail from your favorite recordings. Unfortunately, they can also reveal problems elsewhere in the power chain—especially when it comes to noise flowing through your valuable components from your AC power mains. High-frequency noise and electromagnetic noise are radiated through a system by the antenna effect, and this noise is difficult to remove. Many makers of power distribution products will try to minimize the adverse effects of the noise with a simple electrical circuit, whereas the Pure Power 6 NCF, through use of special grade materials, isolation and grounding methods, incorporates a method of “induction and absorption” to eliminate this noise. Tests results show (graph 1) the surprising effectiveness of the “induction and absorption” method of the Pure Power 6 NCF as compared to the industry standard circuit method for reducing high-frequency and electromagnetic noise.

-Test method-

Input of high-frequency reference noise signal into the Pure Power 6 NCF AC inlet with the measurement of the noise signal output from the Pure Power 6 NCF outlets.

Test device: HP’s Network Analyzer

-Graph legend-

Purple = Pure power 6 NCF
Brown = Standard circuit method of third party product

-Test result-

10MHz near, at once attenuation in the 100MHz from per 2MHz. It has been successful in quite significant noise induction. It is characteristic of the startle.

Dramatic reduction of noise between 2MHz to 10MHz, and complete elimination of noise at 100MHz proving the effectiveness of the Pure Power 6 NCF induction and absorption method. This will offer improved S/N ratio and ultimately improved sound performance from your system.

RATING

Pure Power 6 – US NEMA Version
Pure Power 6E – Schuko Version

FEATURES

ADVANCED MATERIALS AND TECHNOLOGIES ENSURES STABLE QUIET POWER FOR YOUR ENTIRE SYSTEM

Nano Crystal² Formula – Nano Crystalline, Ceramic and Carbon Powder
Incorporated into select Furutech products, Nano Crystal² Formula — NCF is comprised of a special crystalline material that has two “active” properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional “Piezo Effect” damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material.

Furutech upgrade their Pure Power 6 AC Mains Distributor, the ultimate expression of Furutech’s Pure Transmission Technology. Furutech engineers each and every step of power and signal transfer–no matter how small–using the finest materials and technologies available, like their proprietary Formula GC-303 EMI-absorbent material and Two-Stage Cryogenic and Demagnetizing Super α (Alpha) Treatment applied to all metal parts.

Luxury Build
The Pure Power 6 NCF is built like a Swiss bank vault, a virtual black hole for EMI and RFI. The substantial, beautifully-crafted chassis is precision CNC-machined from solid aerospace-grade aluminum alloy that effectively shields against RFI (Radio Frequency Interference).

Three separate milled compartments house three independently-wired duplex receptacles using top-quality Fluorpolymer-shielded high-purity silver-plated Alpha-OFC. The hot and neutral conductors from the IEC are loomed into a large, centrally-located chamber–secured Bugatti-like with eight beautifully machined rivets–that’s filled with Furutech’s EMI-absorbent Formula GC-303 material. GC-303 absorbs the high-frequency noise that develops whenever passing current through wire.

Furutech’s patented GTX-D NCF Receptacles enhance the vault-like build, ensuring the tightest and most secure power cord fit imaginable. Pure Transmission Technology is applied at every level: The rhodium-plated receptacles are not simply flush with the outer chassis but tapped 25mm into the thick aluminum for an outstandingly tight fit.

Furutech’s already robust mounting flanges at top and bottom of each duplex outlet are held in place against the chassis with thick aluminum blocks applying pressure along the entire width of the flange rather than just securing it with screws at four points.

When Furutech say Pure Transmission, they mean it. Each duplex receptacle is additionally stabilized with double Axial Locks; a pair of special factory-torqued screws anchor the back of each receptacle at two points for ultimate mechanical integrity.

Four elegantly machined adjustable footers keeps the Pure Power 6 stable for your system’s power cords. Run digital into one duplex, analog front-end components into another, and your amplifier on the third for stunning, unrestricted, clean, stable AC power and rich, dynamic sound.

Pure Transmission Grounding/Earthing Post
The three duplex receptacles are not wired to incoming ground; they “float” electrically. The green ground wire from the incoming IEC fitting is tightly fixed to the chassis at the bottom of the center chamber before it’s filled with GC-303, which further isolates the noisy ground. To ensure your safety the Power 6 must be grounded at its Grounding/Earthing Post located near the input IEC.

SPECIFICATIONS

THE PURE POWER 6 NCF: PURE TRANSMISSION TECHNOLOGY IN ITS PUREST FORM
Specifications
Chassis: CNC machined aerospace-grade aluminum alloy
AC Input/Output: 15A IEC input/3 UL-Rated duplex receptacles
Materials Processing: Metal parts treated with α (Alpha) Cryogenic and Demagnetizing Process
Ground/Earth connection: Chassis Grounding Post
IEC Inlet FI-09 NCF (R)- αpure copper conductor rhodium-plated
Receptacles: 3 High End Performance GTX-D NCF (R) Duplex Receptacles
Internal wiring: 3 gauges of high quality twisted-multigauge Fluorpolymer-shielded high-purity silver-plated Alpha-OFC
Solder: Special alloy solder
Size: 8”/250mm W x 8”/250mm H x 3”/95mm D
Weight: 22lbs/10kgs

THE PURE POWER 6-E NCF: PURE TRANSMISSION TECHNOLOGY IN ITS PUREST FORM
Specifications
Chassis: CNC machined aerospace-grade aluminum alloy
AC Input/Output: 15A IEC input/ 6 Rhodium-plated schuko outlets
Materials Processing: Metal parts treated with α (Alpha) Cryogenic and Demagnetizing Process
Ground/Earth connection: Chassis Grounding Post
IEC Inlet: FI-09 NCF (R)- α (alpha) pure copper conductor rhodium-plated
Receptacles: 6 High End Performance FI-E30 NCF (R) Schuko sockets
Internal wiring: 3 gauges of high quality Fluoropolymer-shielded high-purity silver-plated Alpha-OFC
Solder: Special alloy solder
Size: 8”/250mm W x 8”/250mm H x 3”/95mm D
Weight: 22lbs/10kgs
