Connectiques électrique Furutech Fp-tcs31 – Au Mètre

FP-TCS31
α (Alpha) PC-Triple C Power Bulk Cable

-Power cord termination with Furutech FP 209 spades-

The Alpha PC-Triple C forging process at a glance

Step 1: High purity OFC undergoes variable high-pressure forging and folding

Step 2: The fixed-angle continuous transport forged conductor is then subjected to further a elongation and pressing process to create the super-fine conductors. The conductors then go through a time and temperature annealing process which fuses the crystals to each other. The finished conductor is now Alpha PC-Triple C.

Characteristics:
Purity > 99.996%
Conductivity (EC) ~101.5 IACS%
Tensile strength (TS) ~250 MPa
Elasticity (E) ~35% wire (1.3 mmφ)

RATING

FP-S35TC & FP-TCS31 have the same specifications
Voltage rating: 20A 125V / 16A 250V

FEATURES

Designed for audiophiles
Audiophiles are a discerning crowd. They have high expectations of premium power cables, and rightly so. They want a lowered noise floor. Increased resolution. Deeper, tighter bass, improved soundstaging and enhanced imaging. Plus of course a rugged construction with a tight, secure connection. Which is why Furutech’s Alpha PC-Triple C conductor was conceived specifically for audiophile use and developed to deliver the purest power transfer possible.

The precision of a sword
The Samurai knew a thing or two about precision engineering: who could argue with the razor-sharp technology of the katana, the Samurai sword? Key to its craftsmanship was a forging process involving repeated rounds of metal folding. Furutech’s Alpha PC-Triple C conductor mirrors that technique, using an ingenious proprietary forging process in which variable high pressures are applied to high-purity oxygen-free copper, essentially folding the metal tens of thousands of times. The copper’s crystal grain boundaries are thus transformed from a vertical direction into a longitudinal orientation, allowing the electrical signal to flow considerably more smoothly along the completed cable. The copper’s crystals become vastly more uniform and well-connected both physically and electrically, creating a much more highly conductive cable.

The result is a sound that’s free of artifacts and impurities, delivering a wholly more compelling listening experience. As a result, you’ll detect a number of important improvements:
• A lowered noise floor, allowing more music to flow through your system.
• Greater resolution and inner detail, letting you hear even more deeply into much-loved recordings.
• Tighter, more controlled low frequencies, with more three-dimensional textures.
• Cleaner, clearer highs with almost unlimited extension for today’s hi-resolution recordings.
• Greater image focus, with a more precise and realistic reproduction of the soundstage.
• An increase in dynamics throughout the entire frequency range.

Is it really possible to hear such differences from a power cable? Absolutely. But don’t take our word for it – experience the difference for yourself. Replace your existing hi-fi power cords with Furutech’s Alpha PC-Triple C bulk power cable and you’ll feel closer to your music than ever before. Or add them to your home theater system for sharper, clearer video images and truer colors.

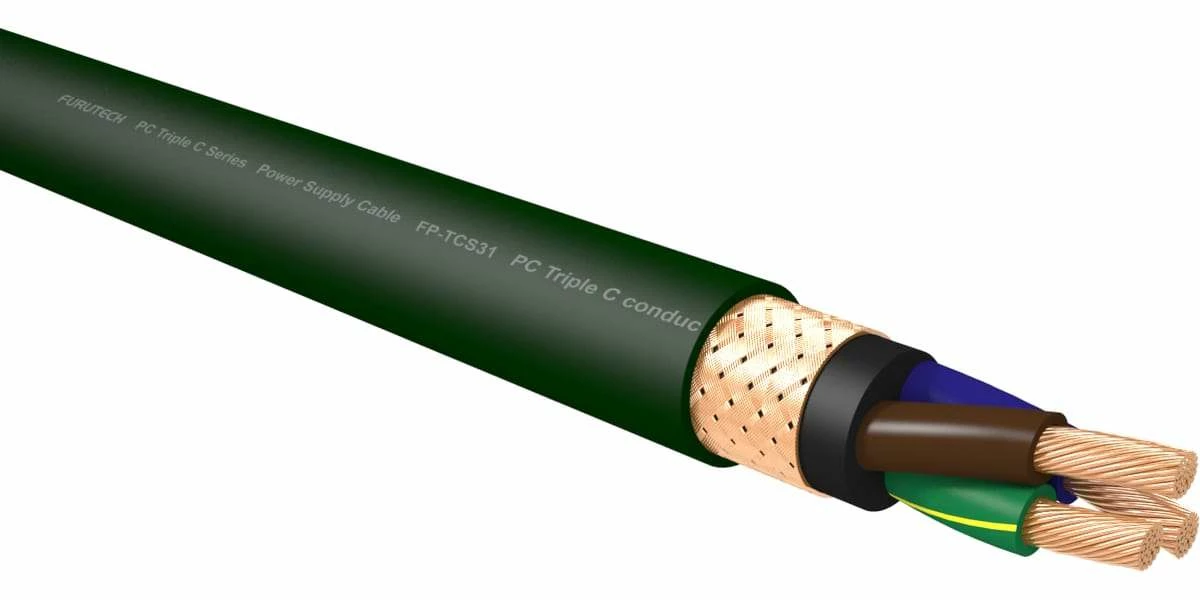

SPECIFICATIONS

– Alpha PC Triple C conductor: diameter 2.5mm (12 AWG)
– Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 5.0mm
– Inner Sheath: Special grade Flexible PVC (Black) diameter 12.0mm
– Shield: 0.12mm OFC Wire Braid
– Outer Sheath: Flexible PVC (Dark Green) diameter 16.0mm

Characteristics
1. Purity > 99.996% 2. Conductivity (EC)~101.5 IACS% 3. Tensile strength (TS) ~250 MPa
4. Elasticity (E) ~35% Wire (1.3mmφ)
